KX12DT-WE

Two Way Wireless 12m Digital Dual Technology PIR and Microwave Detector

  • Fully Two Way Wireless
  • Instant two way device control (ITDC)
  • Auto sensitivity feature
  • Digital temperature compensation
  • ABS plastics
  • 868MHz Transceiver FM technology
Product Features
FeaturesDescription
10m Pet Immune detectorThe detectors intelligent PI (Pet Immune) technology analyses the difference between an intruder and a pet signal, with immunity up to 20kg and 10m coverage range.
Instant two way Device Control (ITDC)The ITDC technology enables instant wake up and instant sleep of each device on the system, allowing continuous communication between the control panel and wireless devices while preserving battery power. This technology not only provides installers with total control of each device, but also gives users peace of mind that they have a reliable and secure wireless system.
- Ensuring that all wireless detection devices know when the system is armed and disarmed.
- Ensuring that they are awake as soon as the system is armed.
Signal Strength Indicator (SSI)One of the key advantages of implementing of the SSI technology is to allow the installer to view the wireless transmission signal strength on both the control panel and wireless devices in real time.
12m Wireless Volumetric detector12m Volumetric detection coverage. Ideal for protection of rooms, offices etc.
Auto sensitivity featureDepending on the environment condition, the detector will automatically adjust the sensitivity
ABS plastics3mm polished finish, reduces electrostatic interference on the PIR sensor.
Pyronix High Security Wireless Protocol EncryptionThe two way wireless protocol has been developed by Pyronix to ensure that the communication between all wireless system components is protected on a very high security level. The protocol uses the 128 BITS Pyronix advanced encryption key.
Lens Coverage

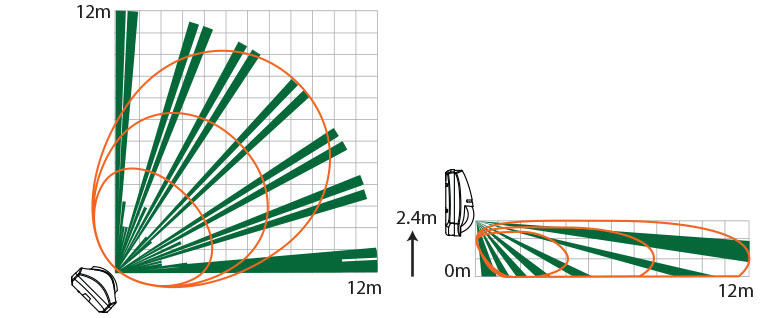

KX12DT-WE Lens Diagram: Horizontal and Vertical Coverage

KX12DT-WE Lens Diagram: Horizontal and Vertical Coverage

Technical Specification
BATTERY
Battery lifeUp to 2 years

ENVIRONMENTAL (WIRELESS DEVICE)
Operating Temperature-10
Storage Temperature-20

DETECTION
Range12m
Zones30
Speed0.3-3.0m/s
Angle85

WIRELESS DEVICE
Battery Type2 x 3.0V CR123A

TRANSMISSION
Transmission Frequency868MHz FM Transceiver Narrow Band
Transmission MethodFully868MHz FM Transceiver Narrow Band Encrypted Rolling Code
Transmission Range300m Free Space

Information
COMPLIANCE (click image to download certificate)
CE
Denmark
EN Europe
Finland
Netherlands
Norway
Russia
PACKING INFORMATION
Min Pack1
Warranty2 years
DesignedUK
