Aspherical Lens
In the KX Series, the distance between the pyro-electric sensor and the lens is identical for each detection zone. This eliminates distortion and provides excellent focused zones.In traditional detectors the lens is made in a flat form and bent into a cylinder. Therefore the distance between the pyro-electric sensor and the lens varies for each detection zone. This causes distortion and unfocused zones.
Tamper Proof Brackets
Wall and Ceiling Brackets supplied in high impact strength white ABS plastic. These brackets provide a high resistance to reorientation, with the option of tamper protection while providing access for two 8 core cables.Compatibility
All Enforcer 868MHz High Security Peripherals are compatible with the Enforcer control panel, and Euro panels fitted with the EURO-ZEM32-WE wireless zone expander.- 12m Volumetric detection
- Dual element pyro-electric sensor
- Blue wave technology
- Digital temperature compensation
- Sealed optics
- ABS plastics
- Signal Strength Indicator on the Device
- Pyronix High Security Wireless Protocol Encryption
- 868MHz Transceiver FM technology
Product Features
| Features | Description |
| Signal Strength Indicator (SSI) | One of the key advantages of implementing of the SSI technology is to allow the installer to view the wireless transmission signal strength on both the control panel and wireless devices in real time. |
| 12m Wireless Volumetric detector | 12m Volumetric detection coverage. Ideal for protection of rooms, offices etc. |
| Digital Temperature Compensation | When the product is used in a hot environment this technology digitally adjusts the detector’s sensitivity allowing it to maintain its range even when the background room temperature is almost equal to the external body temperature of 32ºC (internal body temperature = 37ºC) |
| Blue wave technology | This technology further enhances the detector’s immunity to infra-red noise in the environment. BWT comprises of 2 key components: 1). The new 3D optics system enables perfect focussing of the infra-red signal onto the pyro-electric sensor. This allows BWT to clearly identify the positive and negative signal edges. 2). Powerful software embedded into a microprocessor is used to process the received information from the pyro-electric sensor. The result of this combination is lower infra-red signal noise amplification and therefore better immunity. |
| Sealed optics | Protects from possible infestation from insects, shields air movement in front of the pyro-electric sensor and protects against adverse reflections from inside the detector housing. |
| ABS plastics | 3mm polished finish, reduces electrostatic interference on the PIR sensor. |

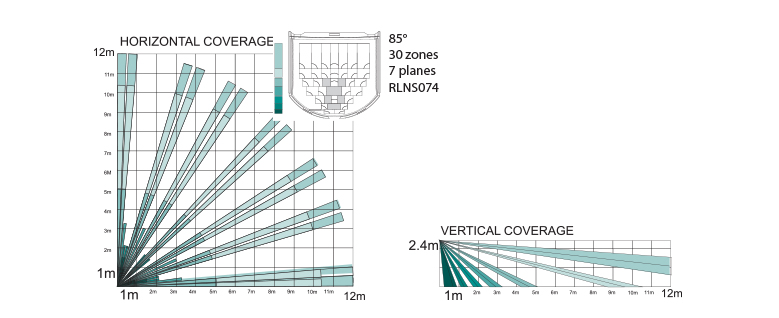

Lens Coverage
KX12DQ-WE |
Technical Specification
| BATTERY | |
| Battery life | Greater than 2 years |
| ENVIRONMENTAL (WIRELESS DEVICE) | |
| Operating Temperature | -10 |
| Storage Temperature | -20 |
| DETECTION | |
| Range | 12m |
| Zones | 74 |
| Speed | 0.3 - 3.0 m/s |
| Angle | 85 |
| WIRELESS DEVICE | |
| Battery Type | 3V CR123A Lithium Battery |
| TRANSMISSION | |
| Transmission Frequency | 868MHz FM Transceiver Narrow Band |
| Transmission Method | Fully Encrypted Rolling Code |
| Transmission Range | 300m Free Space |
Information
| COMPLIANCE (click image to download certificate) | |
| CE |  |
| Denmark |  |
| EN Europe |  |
| Finland |  |
| Netherlands |  |
| Norway |  |
| Russia |  |
| PACKING INFORMATION | |
| Min Pack | 1 |
| Warranty | 2 years |
| Designed | UK |
