The KX10DP-WE Pet Immune Wireless PIR is the ideal addition to any high security Enforcer alarm system, especially in domestic installations.
868MHz Compatibility
All Enforcer 868MHz High Security Peripherals are compatible with the Enforcer control panel, and Euro panels fitted with the EURO-ZEM32-WE wireless zone expander. Enforcer Two Way radio technology is suitable for use in EN50131 Grade 2 systems.- 10m Pet immune detection up to 20kg animal
- Dual element pyro-electric sensor
- Blue wave technology
- Digital temperature compensation
- Sealed optics
- ABS plastics
- Signal Strength Indicator on the device
- One Push To Learn Button
- 868MHz Transceiver FM technology
- Pyronix High Security Wireless Protocol Encryption
Product Features
| Features | Description |
| Signal Strength Indicator (SSI) | One of the key advantages of implementing of the SSI technology is to allow the installer to view the wireless transmission signal strength on both the control panel and wireless devices in real time. |
| Blue wave technology | This technology further enhances the detector’s immunity to infra-red noise in the environment. BWT comprises of 2 key components: 1). The new 3D optics system enables perfect focussing of the infra-red signal onto the pyro-electric sensor. This allows BWT to clearly identify the positive and negative signal edges. 2). Powerful software embedded into a microprocessor is used to process the received information from the pyro-electric sensor. The result of this combination is lower infra-red signal noise amplification and therefore better immunity. |
| 10m Pet Immune detector | The detectors intelligent PI (Pet Immune) technology analyses the difference between an intruder and a pet signal, with immunity up to 20kg and 10m coverage range. |
| Digital Temperature Compensation | When the product is used in a hot environment this technology digitally adjusts the detector’s sensitivity allowing it to maintain its range even when the background room temperature is almost equal to the external body temperature of 32ºC (internal body temperature = 37ºC) |
| Sealed optics | Protects from possible infestation from insects, shields air movement in front of the pyro-electric sensor and protects against adverse reflections from inside the detector housing. |
| ABS plastics | 3mm polished finish, reduces electrostatic interference on the PIR sensor. |

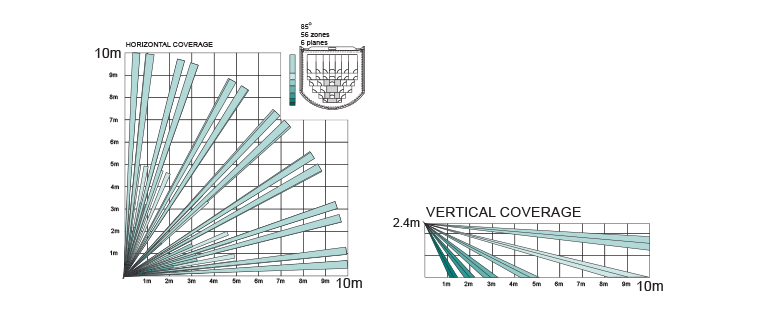

Lens Coverage
KX10DP-WE |
Technical Specification
| BATTERY | |
| Battery life | Greater than 2 years |
| ENVIRONMENTAL (WIRELESS DEVICE) | |
| Operating Temperature | -10 |
| Storage Temperature | -20 |
| DETECTION | |
| Range | 10m |
| Zones | 74 |
| Speed | 0.3 - 3.0 m/s |
| Angle | 85 |
| WIRELESS DEVICE | |
| Battery Type | 3V CR123A Lithium Battery |
| TRANSMISSION | |
| Transmission Frequency | 868MHz, FM Transceiver Narrow Band |
| Transmission Method | Fully Encrypted Rolling Code |
| Transmission Range | 300m Free Space |
Information
| COMPLIANCE (click image to download certificate) | |
| CE |  |
| Denmark |  |
| EN Europe |  |
| Finland |  |
| Netherlands |  |
| Norway |  |
| Russia |  |
| PACKING INFORMATION | |
| Min Pack | 1 |
| Warranty | 2 years |
| Designed | UK |
